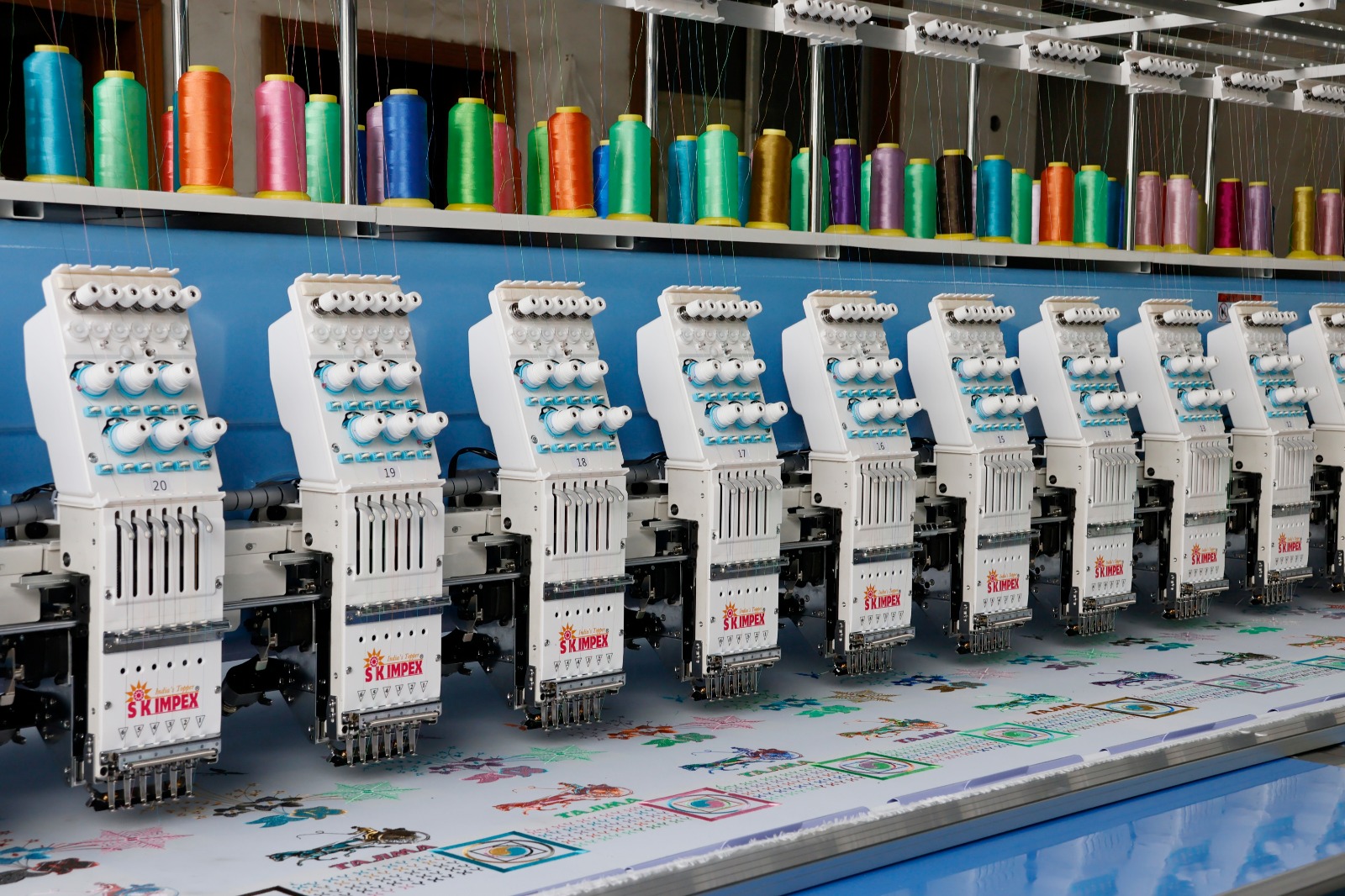

Computerized Embroidery Machine Model : Sk-617

  • 6 Needles, 17 Heads, Area: 250x500x1200 mm Without Trimmer, Without Sequence
  • Dahao 528 Computer 8 Inch
  • Main Dahao Servo Motor, XY Servo Motor
  • Linear Driver
  • Single Cam Double Driver High Speed Head With Oiling System
  • Heavy Body 300×400 With Two L Support
  • Work Speed 1000rpm With 1.6 Times Jumbo Hook
  • New Panto System With Steel
  • New High Speed Tension
  • Single Phase (220v)
  • Italy 50 Mm Belt/X3,Y4
  • Original Japanese Hooks & Bobbin Case
  • Front Side, Back Side All Type Linear Drive
  • Heavy Pantograph
  • All Dahao Servo Motor
  • 18 Mm White Steel Shaft
  • Under Thread Detection System
  • Silver Driver (Silver Md02)
  • Head Aliuminum Guide Linear
  • Standard Accessories As Per List

Technical Specification

MODEL AREA MACHINE INCH.
6x15 250x500 17.5”
6x15 250x750 19.5”
6x16 250x750 20.2”
6x17 250x500 19.5”
6x17 250x750 21.2”
6x19 250x750 22.75”
6x11 350x700 18.2”
6x16 350x700 24”
6x13 400x800 22.5”
